1.6 Logical Architecture

Document/Purpose
Traceability (Upstream /Downstream) Documents Upstream: 1.5 Functional Architecture and Activities
Downstream: 1.7 Physical Architecture
Status Pre-DRAFT
Baseline Version/Date | Current Version Not yet established | v0.1
Last Updated
Owner / Lead  Sanjay Chadha
Contributors
Reviewers
Scope/Out-Of-Scope Scope:
Out-of-Scope:

Table of Contents

IOR Service Provider (ISP) Ground Segment (GS)

The IOR Service Provider (ISP) Ground Segment (GS) is decomposed here into logical components and their responsibilities. Detailed system boundary and external interfaces are defined in 1.8 Boundaries and Interfaces: 1.8 Boundaries and Interfaces

Allocation of these logical components to physical infrastructure is covered in 1.7 Physical Architecture

ISP GS logical components

SNO Logical Component Acronym Primary Responsibilities (Logical)
1 Ground Segment Server GSS Orchestrates end-to-end GS operations; routes and records mission data; triggers planning computations; distributes plans; consolidates telemetry, ephemeris, and status products for downstream systems and operators.
2 Landing Station Manager LSM Distributes contact/hopping plans to Landing Stations and to spacecraft through the Landing Stations; relays applicable plan segments via the landing station network.
3 Mission Control System MCS Computes mission plans, including: (1) Contact Plans (CP) – time-tagged contact windows between spacecraft and landing stations; (2) Service Delivery Plans (SDP) – maneuver/trajectory plans for target and phase alignment; (3) Service Plans (SP) – time-tagged plans describing when and how service is delivered to client spacecraft.
4 Client Operator Communication Server CCS Manages communications and data exchange between the Ground Segment and Client Operators (CO), including operator requests, notifications, and delivery of approved mission products.
5 IOR Operator Subsystem IOROS Human-facing operator interface for IOR operations, monitoring, and manual interventions consistent with the GS operational concept.

External entities referenced

  • Landing Stations (LS): External 3rd-party ground assets distributed globally. Landing Stations provide space/terrestrial connectivity during valid contact windows.
  • Spacecraft (SC): Generic term for IOR-cooperative spacecraft (SV, Depot, Resupply Vehicle) and, when applicable, a cooperative Client Spacecraft.

Note: Interfaces between these GS logical components are specified in the following subsections (e.g., GSS ↔ MCS, GSS ↔ LSM). Where an interface is marked “external”, the authoritative definition is in 1.8 Boundaries and Interfaces.

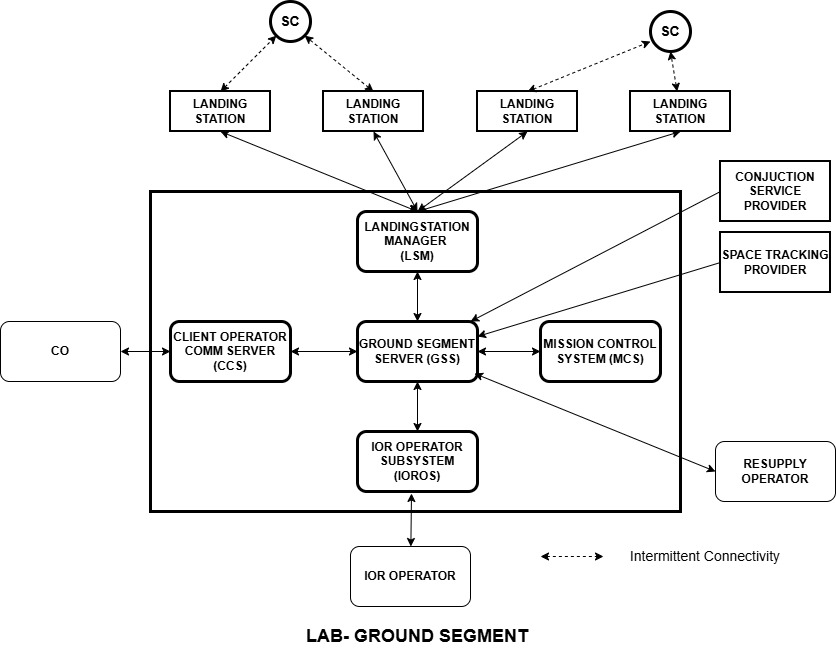

LAB-GROUND SEGMENT.jpg



Figure 1 – Ground Segment Logical Architecture

Arrows represent logical information exchanges between GS logical components and external entities. Detailed interface definitions are provided in the subsections below (e.g., GSS ↔ MCS, GSS ↔ LSM) and in 1.8 Boundaries and Interfaces:
1.8 Boundaries and Interfaces

Ground Segment Server (GSS) <->Mission Control System (MCS)

The Mission Control System (MCS) provides planning services for the Ground Segment (GS). It computes three main types of mission plans:

  1. Contact Plans (CP) – Time-tagged contact windows between Spacecraft (SC) and Landing Stations (LS). These plans are provided to both SC and LS.
  2. Service Delivery Plans (SDP) – Maneuver and trajectory plans for chaser (SV) to target and phase alignment to enable service delivery to the target the CS.
  3. Service Plans (SP) – Time-tagged plans describing when and how service will be delivered to the Client Spacecraft. The chaser CV can be very distant from the target CS so the Service Plan provides the optimal time and location for RPOD initiation and delivery of service. The service plan can be schedule many months in advance.

The Ground Segment Server (GSS) orchestrates all GS operations and uses MCS planning services by sending planning requests and receiving the resulting plan.

Interfaces – Remove Verb in the interface name

SNO Interface Name SRC DST Parameters Purpose | Description | Type
1 GenerateInitialAccessPlan GSS MCS
  • LS Locations
  • SC TLE Data
 Request generation of initial access plan. Initial Access plans are course time based visibility windows for spacecrafts to landing stations communications. These are initial plans used by SCs to communicate with LSs. Access plans are programmed into the SC before launch.
2 CreateContactPlan GSS MCS
  • LS Locations
  • SC Ephemeris
  • Plan Duration
 Request generation of Contact Plans (CP). Contact plans are time-tagged schedules for the specified spacecraft to communicate with landing stations.

Command / Request
3 ContactPlanReady MCS GSS • Contact Plans (CP) Notify GSS that a new set of Contact Plans has been generated. The GSS would then distribute the contact plans to LS and SC.

Event / Response
4 CreateServiceDeliveryPlans GSS MCS
  • Depot Keplerian Elements
  • Depot Ephemeris
  • Client Spacecraft Keplerian Elements
  • Client Spacecraft Ephemeris
 Command / Request | Request generation of Service Delivery Plans (SDP) – maneuver/trajectory plans for target and phase alignment.
5 ServiceDeliveryPlansReady MCS GSS • Service Delivery Plans (SDP) Event / Response | Notify GSS that a new set of Service Delivery Plans has been generated and is ready for downstream use.
6 CreateServicePlans GSS MCS
  • Depot Keplerian Elements
  • Depot Ephemeris
  • Client Spacecraft Keplerian Elements
  • Client Spacecraft Ephemeris
 Command / Request | Request generation of Service Plans (SP) that describe optimized service delivery timelines to the Client Spacecraft.
7 ServicePlansReady MCS GSS • Service Plans (SP) Event / Response | Notify GSS that a new set of Service Plans has been generated and is ready for downstream use (e.g., to CO, LS, SC as needed).

Notes:

  • Detailed data definitions for Ephemeris, Keplerian Elements, and planning products (CP, SDP, SP) are provided in 1.8 Boundaries and Interfaces
  • This subsection captures the logical GSS ↔ MCS exchanges. Physical realization (deployment, protocols) is defined in 1.7 Physical Architecture

Ground Segment Server (GSS) ↔ Landing Station Manager (LSM)

The Landing Station Manager (LSM) distributes Contact Plans to Landing Stations (LS) and to Spacecraft (SC) through the Landing Stations. Landing Stations are 3rd‑party ground assets distributed globally that, using the Contact Plans, enable communications between the Spacecraft and the Ground Segment (GS).

Interfaces

SNO Interface Name SRC DST Parameters Type | Purpose
1 ConfigureLandingStation GSS LSM Command: Add, Delete, Update, Read Command | GSS coordinates with LSM all the LS the GS uses.
2 DistributeContactPlans GSS LSM ContactPlan Command | Distribute the Contact Plans to the LS and SCs
3 ContactPlanDistributionStatus LSM GSS Status: {Distributed, Partial, Failed} Status| Sends the status of DistributeContactPlans request.
4 LandingStationStatus LSM GSM
  • LandingStationID
  • Status {Alive, Down}
  • Last Contact Plan ID
 LSM sends individual LandingStationStatus as LS are updated with latest contact plans.

Landing Station Manager (LSM) ↔︎ Spacecraft (SC)

Spacecraft section covers messages which are common to any IOR Cooperative spacecraft. These are Service Vehicle, Depot and Resupply vehicle. In case Client Spacecraft (CS) is IOR cooperative SC would also cover the CS

LSM Distributes the both HSL and LSL Contact Plans to each Spacecraft. LSM maintains communications with each SC to distribute these plans.

SNO Interface Name SRC DST Parameters Purpose/Type
1 ContactPlanUpdate LSM SC Contact Plan ID

Contact Plan

LinkType {HSL, LSL}

 Contact Plan windows to SC

Type: Data
2 ContactPlanAck SC LSM Contact Plan ID

ReturnCode {Received, Error }

 Type: Status

Ground Segment Server (GSS)↔︎ Spacecraft (SC)

Ground Segment Server and SC talk through the Landing Station (as per the active contact window), Terrestrial Network and to the GSS. Spacecraft can either be a Depot or a Service Vehicle.

SNO Interface Name SRC DST Parameters Purpose/Type
1 SCOrbitalStatus SC GSS
  • Spacecraft ID
  • Spacecraft Orbital Status (OrbitalStatus)
 Sent Autonomously

Type: Status
2 SCTelemetryData SC GSS
  • Spacecraft ID
  • Telemetry data {Temperature, Battery, Propellant quantity}
 Sent Autonomously

Type: Data
3 SCEphemerisData SC GSS
  • Spacecraft ID
  • Ephemeris Data
 Sent Autonomously

Type: Data

Ground Segment Server (GSS) <-> Service Vehicle

This interface is an external interface between IOR GS and SV and is covered in 1.8 Boundaries and Interfaces

Ground Segment Server (GSS) <-> Depot

This interface is an external interface and is covered in 1.8 Boundaries and Interfaces

IOR Spacecraft

IOR spacecraft is available in 4 capability levels as outlined here and with capability requirements here. Following sections provides details of the 4 capability levels:

IOR Capable Spacecraft

IOR capable spacecrafts have the ability to be master or slave in the service delivery and RPOD process. SV (chaser, master), Depot (target, slave), Resupply Vehicle (chaser, master) and IOR capable client spacecraft (target, slave) are IOR capable space crafts. IOR capable spacecraft logical architecture decomposition and inter-component interfaces are defined in this section

IOR Cooperative Spacecraft
├── Proximity Operations Subsystem
│ ├── SRFL (Inter-satellite RF Link)
│ ├── Relative Navigation Sensor (LiDAR)
│ ├── Relative Navigation Sensors
│ └── Relative Navigation Processing Unit
│
├── GNC Subsystem
│ ├── ADCS
│ └── GNSS Receiver
│
├── Propulsion Subsystem
│ ├── Propulsion Control
│ └── Thermal Subsystem
│
├── Docking & Refueling Subsystem
│ ├── Docking & Fueling
│ └── Propellant Sensor
│
├── Communication Subsystem
│ ├── CCSDS Protocol Handler
│ ├── Ground Communication Low Speed Link (LSL)
│ └── Ground Communication High Speed Link (HSL)
│
├── Power Subsystem
│ ├── Solar Panel Interface
│ └── Battery
│
└── Onboard Computing (OBC)
└── Refuel Orchestrator (RO)

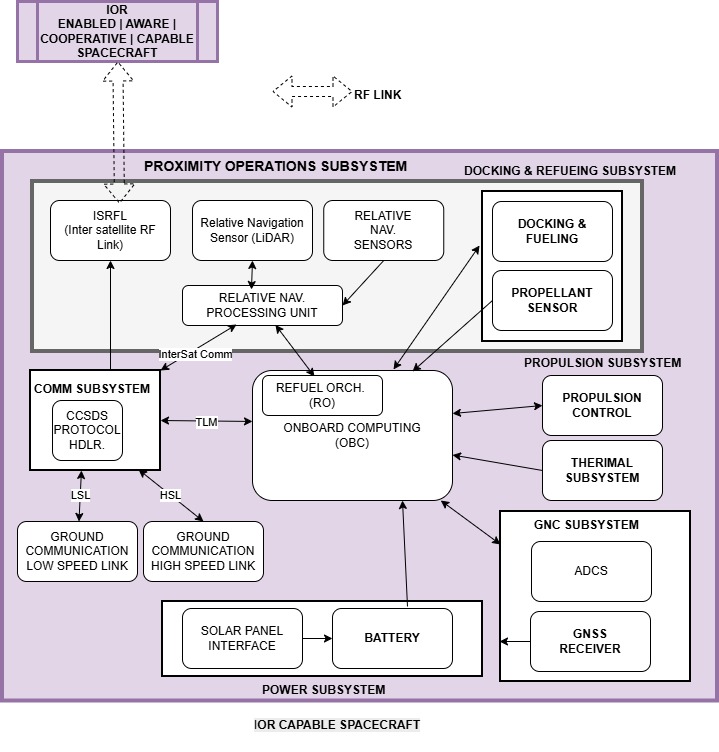

LAB - IOR CAPABLE SPACECRAFT V0.2.jpg



ReFuel Orchestrator (RFO)↔︎ Proximity Operations Subsystem (POS)

Interface Type: 2 Way communication.

SNO Interface Name SRC DST Parameters Type | Purpose
1 StartProximitySystem RFO POS None. Command | Start the proximity system and establish communication.
2 SpacecraftDetected POS RFO Status | The POS local navigation system detected a remote spacecraft. Communication is not established yet.
3 EstablishISRFL RFO POS RF Frequency, CraftID Command. Send command to attempt to make a two way communication effort with remote craft.
4 EstablishISRFLStatus POS RFO Status: {Established, Failed} Status
5 ProximityOperationInit RFO POS
  • Proximity Status (definition)
  • Master|Slave {Master, Slave)
 Status. This message is sent to remote craft.
6 OnProximityOperationInit POS RFO
  • Proximity Status (definition)
  • Master|Slave {Master, Slave)
 Status. This message is received from remote craft.
7 ProximityOperationReady RFO POS
  • Proximity Status (definition)
  • Master|Slave {Master, Slave)
 Status. This message is sent to from remote craft when this craft is ready to start the proximity operations.
8 Please see this to see rest of the messages between RFO/POS

ReFuel Orchestrator (RFO)↔︎ GNC

Refuel Orchestrator (RFO) requires services of GNC to accomplish its tasks. RFO:

  1. Uses GNC to determine attitude of the spacecraft.
  2. Uses Galileo GNSS to determine the Ephemeris data
  3. Uses GNC to alter the attitude of the spacecraft
SNO Interface Name SRC DST Parameters Type | Purpose
1 GetAttitude RFO GNC None. Request | Get spacecraft attitude
2 GetAttitudeResponse GNC RFO pitch, roll, yaw Angles. Response
3 GetEphemeris RFO GNC None Request| Get the emphemeris of spacecraft
4 GetEphemerisResponse GNC RFO X, Y, Z, Vx, Vy, Vz Response
5 Roll RFO GNC roll Angle Command
6 Pitch RFO GNC pitch Angle Command
7 Yaw RFO GNC yaw Angle Command

ReFuel Orchestrator (RFO)↔︎ PRopulsion System (PRS)

Refuel Orchestrator (RFO) requires services of PRopulsion System (PRS)to accomplish its tasks. RFO:

  1. Uses PRS to manuever the spacecraft (both in Orbit Phasing stage and during proximity operations)
SNO Interface Name SRC DST Parameters Type | Purpose
1 PerformManeuver RFO PRS ΔV Command
2 ManeuverStatus PRS RFO ΔV Achieved

ΔV Residual

 Status

ReFuel Orchestrator (RFO)↔︎Docking and Refueling System (DRS)

Docking and Refueling System (DRS) is available only in crafts at capability level of: IOR Cooperative. Only client spacecraft may not have the capability level of IOR Cooperative. The Dept, SV and Resupply Vehicle all have capability level of IOR Cooperative.

Refuel Orchestrator (RFO) requires services of Docking and Refueling System (DRS)to accomplish its tasks. RFO:

  1. Uses DRS to get the docking status
  2. Uses DRS to dock
  3. Uses DRS to undock
  4. Uses DRS to start Refuel (for Master spacecraft which needs to deliver fuel)
  5. Uses DRS to stop Refuel
  6. Uses Propellant Sensor to monitor Refuel

These tasks are performed at the edge of the Proximity Operations.

SNO Interface Name SRC DST Parameters Type | Purpose
1 GetDockingStatus RFO DRS None Command
2 DockingStatus DRS RFO NOT_DOCKED
DOCKED
DOCKING		 Response
3 PerformDock RFO DRS None As a master, perform the dock. As a slave participate in the dock
4 PerformUndock RFO DRS None As a master, perform the undock. As a slave participate in the undock
5 StartPropellantTransfer RFO DRS None As a master, start the transfer. This is NOP in a slave.
6 StopPropellantTransfer RFO DRS None As a master, stop the transfer. This is NOP in a slave.
7 GetPropellantLevel RFO DRS None Request
8 PropellantLevel DRS RFP propellant Level Response

IOR Cooperative Spacecraft

IOR cooperative spacecraft assists the IOR capable space craft in pre-docking, docking, transfer and post dock operations by forming a two way RF communication link. It has a subset of capabilities of an IOR Cooperative spacecraft.

IOR Cooperative spacecraft through the Client Ground Segment assists the ISP GS during the RPOD and propellant transfer process.

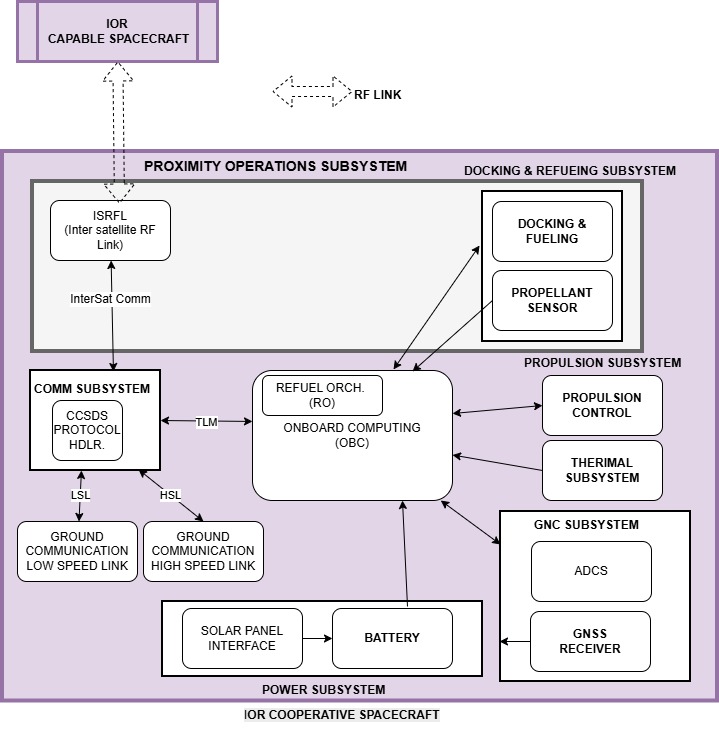

LAB - IOR COOPERATIVE SPACECRAFT V0.2.jpg
